Safety systems

The system is equipped with safety devices that set in before critical conditions are reached that may pose a risk to the operator.

The safety system of the machine has been divided into two types:
•    Safety devices that form an integral part of the system and are provided by the manufacturer.
•    Devices, precautions or protections the customer has to provide for.

Safety devices integrated with the machine:

The safety devices installed serve to protect both the operator and the system (they prevent the machine from reaching critical conditions).
Protection against unexpected failures is assured by the careful design and the components selected (both provide wide safety margins) taking into account the operating speed reached by the machine and the operations it performs.
A series of labels on the machine warn (as well as indicating any residual risks) the operator not to make any risky manoeuvres that might put his own, others’ and the machine’s safety at risk.

The employer is obliged to inform and train the staff on the following safety-related issues:

•    Risks of injury
•    Operator safety devices
•    General safety regulations set out in the international directives and the legislation of the country where the machine is used.

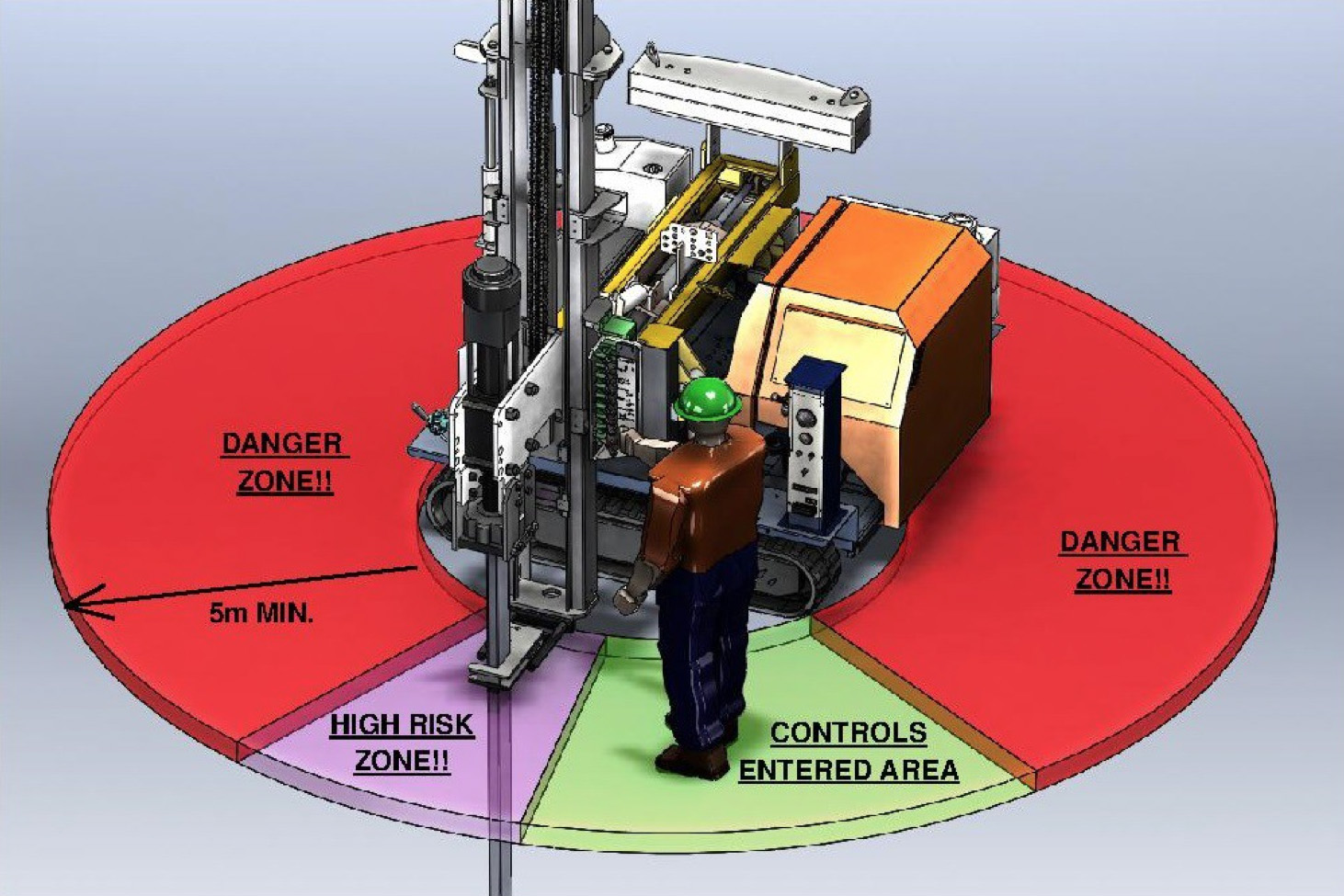

The operator must always:

1. Wear personal protection devices in areas where required.
2. Pay the utmost attention to the precautions, warning or danger signs on the machine and on the system.
3. Wear working gloves when operating on the machine.
4. Wear a headset to protect hearing.
5. Wear a hard hat when operating the machine and during maintenance and adjustment operations.
6. Always wear safety shoes.
7. Do not wear clothes, jewellery or accessories that might get caught up in the moving parts.
8. Always wear antistatic clothing.

Safety Features

•    Built to exceed strict European Safety Standards:
o    Machinery Directives 2006/42/EC (Health & Safety)
o    Directive 2000/14/EC (Acoustic Emissions)
o    Directive 2004/108/EC (Electromagnetic)
o    Directive 2006/95/EC (Voltage)
•    Designed and built with both active and passive safety features for peace of mind.
•    Ergonomic design to minimize fatigue.
•    Control panel positioning allows operator full and clear view of the entire operating process.
•    Recessed panel and key lock out to prevent unauthorised or accidental operation
•    Highly visible and easily accessible emergency button to shut down entire machine operations in the event of any type of emergency.
•    High quality hydraulic hoses and fittings to eliminate any unexpected contact with hydraulic fluids.
•    Anti drop valves on the hydraulic system prevent any uncontrolled movement if the hydraulic pressure ever fails.

Safety devices

The safety devices installed are:

1. Guards for the moving parts of the machine
2. Emergency button
3. Adhesive danger warning labels
4. Safety Microswitch

1. Guards
The metal (or Plexiglas) guards completely cover all the moving parts within wide safety margins. The guards are fitted with opening devices or retaining screws that can be removed whenever necessary to perform adjustment, cleaning and maintenance operations on the parts.

WARNING!
If operating with the guards removed, the operators in the vicinity of the system might come into contact with moving or particularly hot parts.

WARNING!
It is in any case prohibited to remove the movable or fixed guards when the machine is running.  The manufacturer is relieved of all responsibility for accidents caused by operating the machine when the guards have been removed!

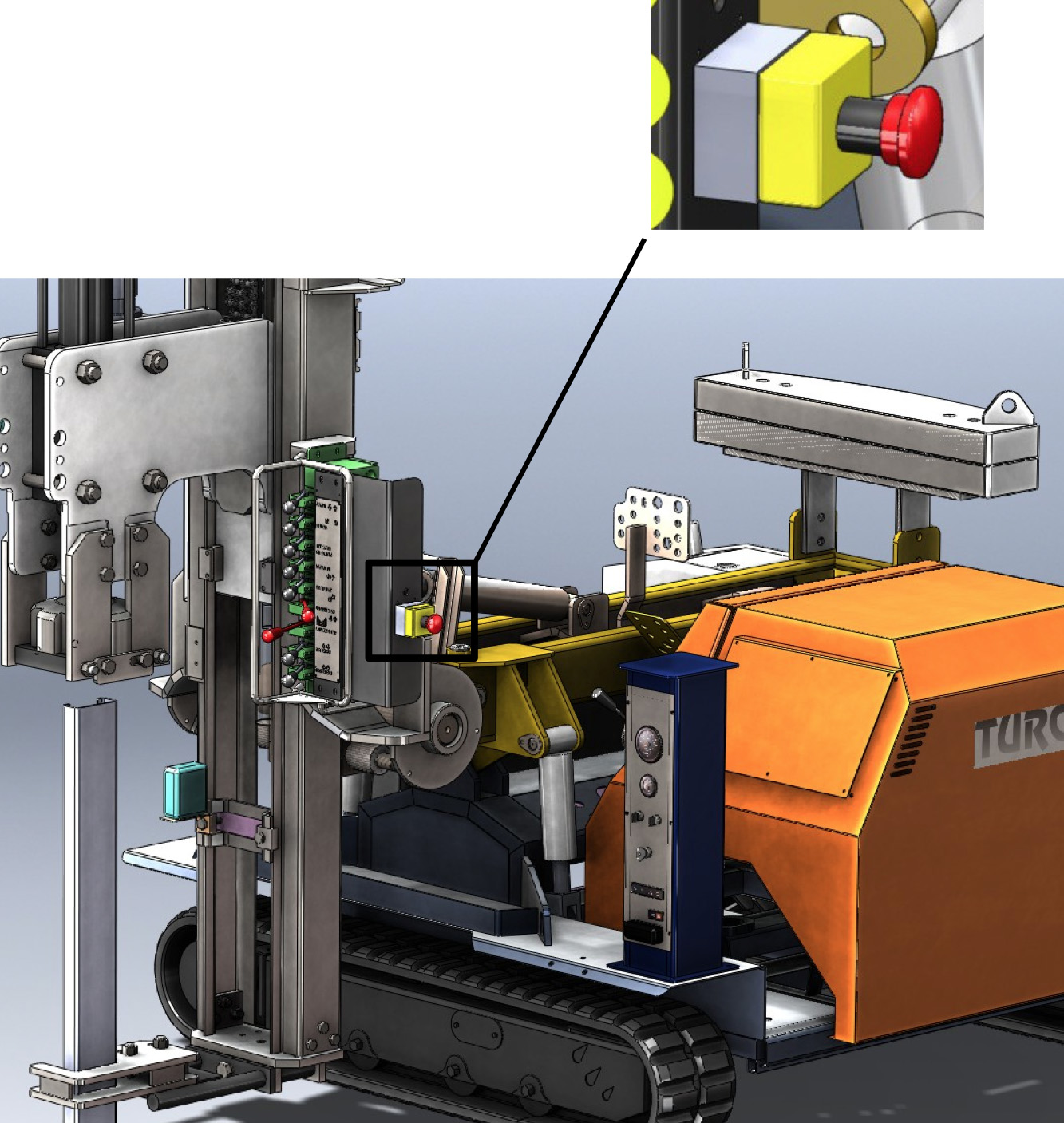

2. Emergency button
The mushroom button is highlighted with a specific colour in accordance with the regulations in force for emergency stop buttons. When the mushroom button is pressed it stays locked in that position. To restart machine operation, turn it clockwise to the original position. Functionality of each emergency mushroom button must be checked every 300 hours of operation. These devices allow immediately stopping the machine when a condition dangerous to the operators or the machine occurs (malfunctioning, unusual noise, possible failures, etc.).The mushroom button is positioned on the control panel.

3. Adhesive danger warning labels
The machine is equipped with adhesive warning labels that help the operator work in complete safety. These warning labels indicate the residual risks that could not be eliminated by employing safety devices which would not permit normal system operation. These adhesive labels must always be well visible and may never be detached or damaged since they form an integral part of the system. Should they deteriorate, contact the manufacturer for a copy of the adhesive labels to be replaced.

The manufacturer declines all responsibility for damages caused to the system or persons if the system is used without the aid of the adhesive labels with which it was delivered.

4. Safety microswitch
The machine is equipped with safety microswitches which when tripped immediately stop all the machine movements. When knocking against the guards, the microswitches are tripped and all the moving parts of the machine are immediately stopped.
